Electrical Signal from the Guitar

The guitar sends out a small electrical version of the string's motion. It has shape, but not enough energy to make much sound by itself.

• Represents string vibration
• Has a shape over time
• Too weak to move a speaker

The Signal Is a Shape

That waveform is not random. Its shape is the thing the system tries to carry from the guitar all the way to the speaker.

• Shape represents motion
• This becomes sound later
• Must be preserved or changed

The Amp Adds Energy

A clean amplifier makes the same waveform bigger. The shape stays the same, but now it has enough energy to drive a speaker.

• Amp increases energy
• Shape stays the same
• Bigger signal = more motion

Tube Amps Add Energy with Vacuum Tubes

Inside a tube, heated electrons are already ready to flow from one side to the other. The guitar signal acts like a control that opens and closes that electron flow, so a small signal can unleash a much larger one.

• Tubes have electrons ready to flow
• The guitar signal controls that flow
• That turns a small signal into a bigger one

Solid State Amps Add Energy with Transistors

Solid state amps use transistor circuits to increase the guitar signal. They are often chosen for reliable clean power, precision, and consistency at many volume levels.

• Transistor circuits amplify the signal
• Usually very consistent and controlled
• Often preferred for clean headroom and reliability

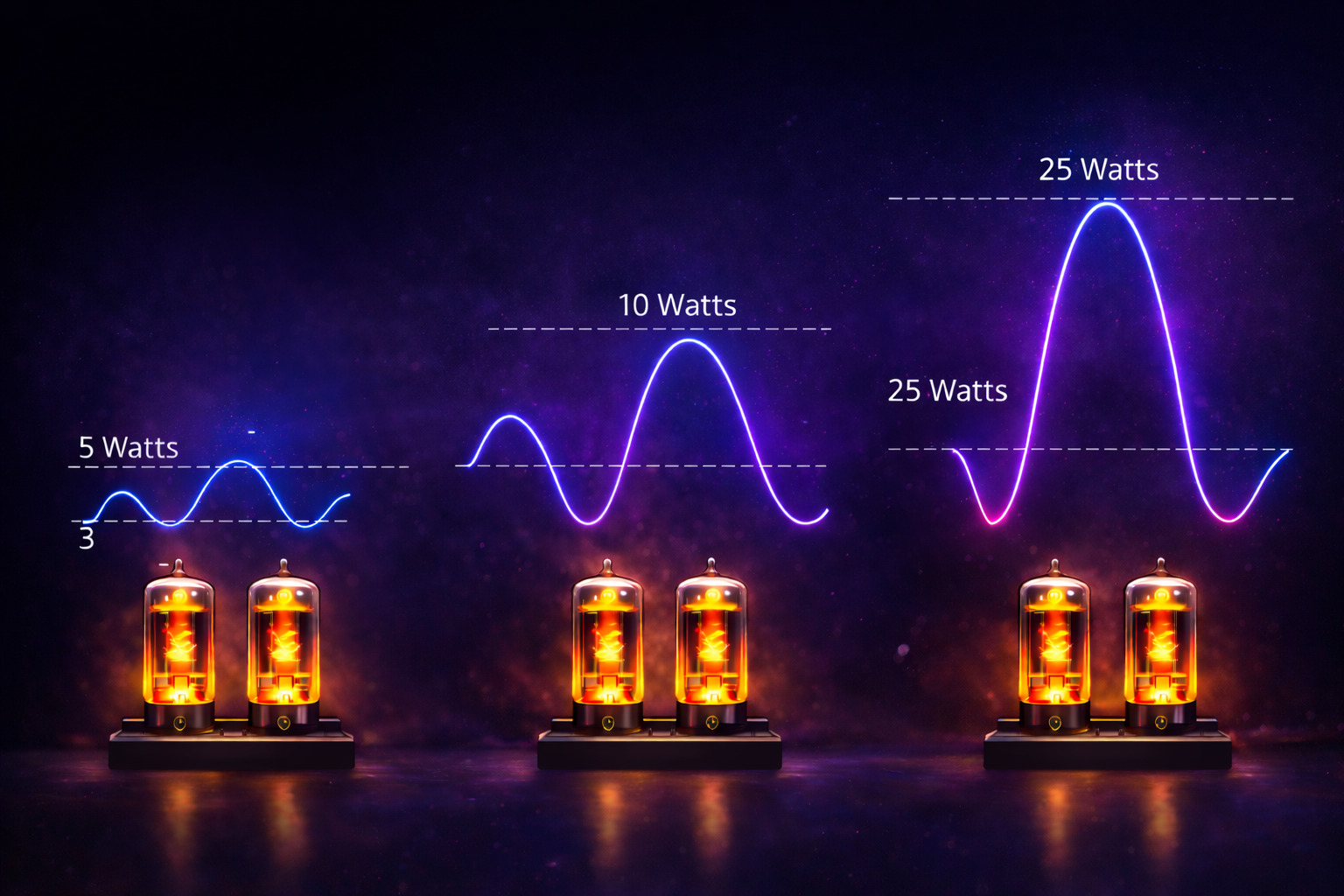

Wattage Sets the Maximum

An amp has a maximum output. That creates a ceiling the signal cannot go beyond, no matter how hard the circuit is pushed.

• Amp has a maximum power
• This creates a limit
• Signal cannot go beyond this

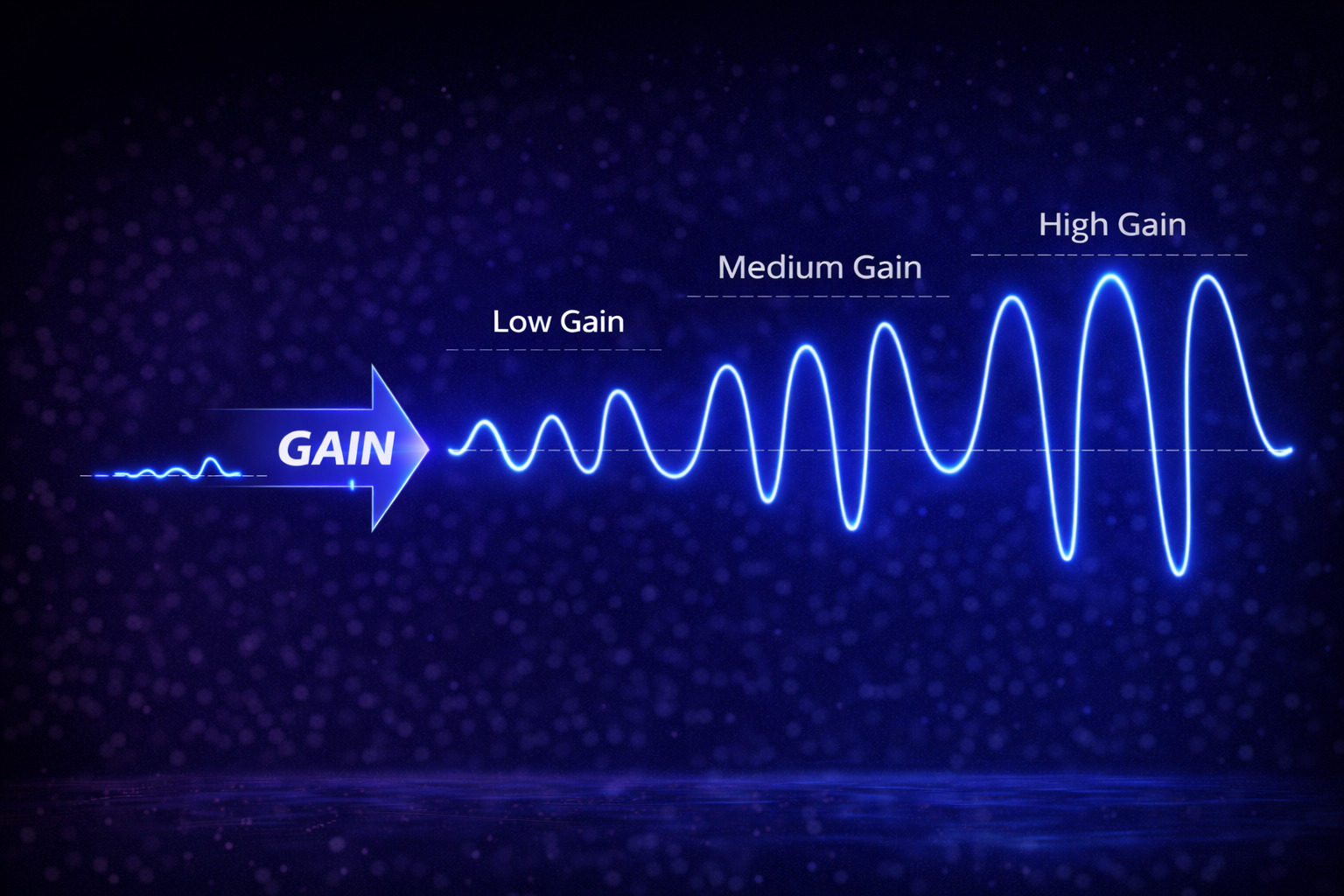

Gain = How Hard You Push

Gain controls how much the signal is boosted early in the amp. More gain means a larger signal heading toward the amp's ceiling.

• Gain increases signal strength early
• Higher gain = bigger signal
• Pushes toward the limit

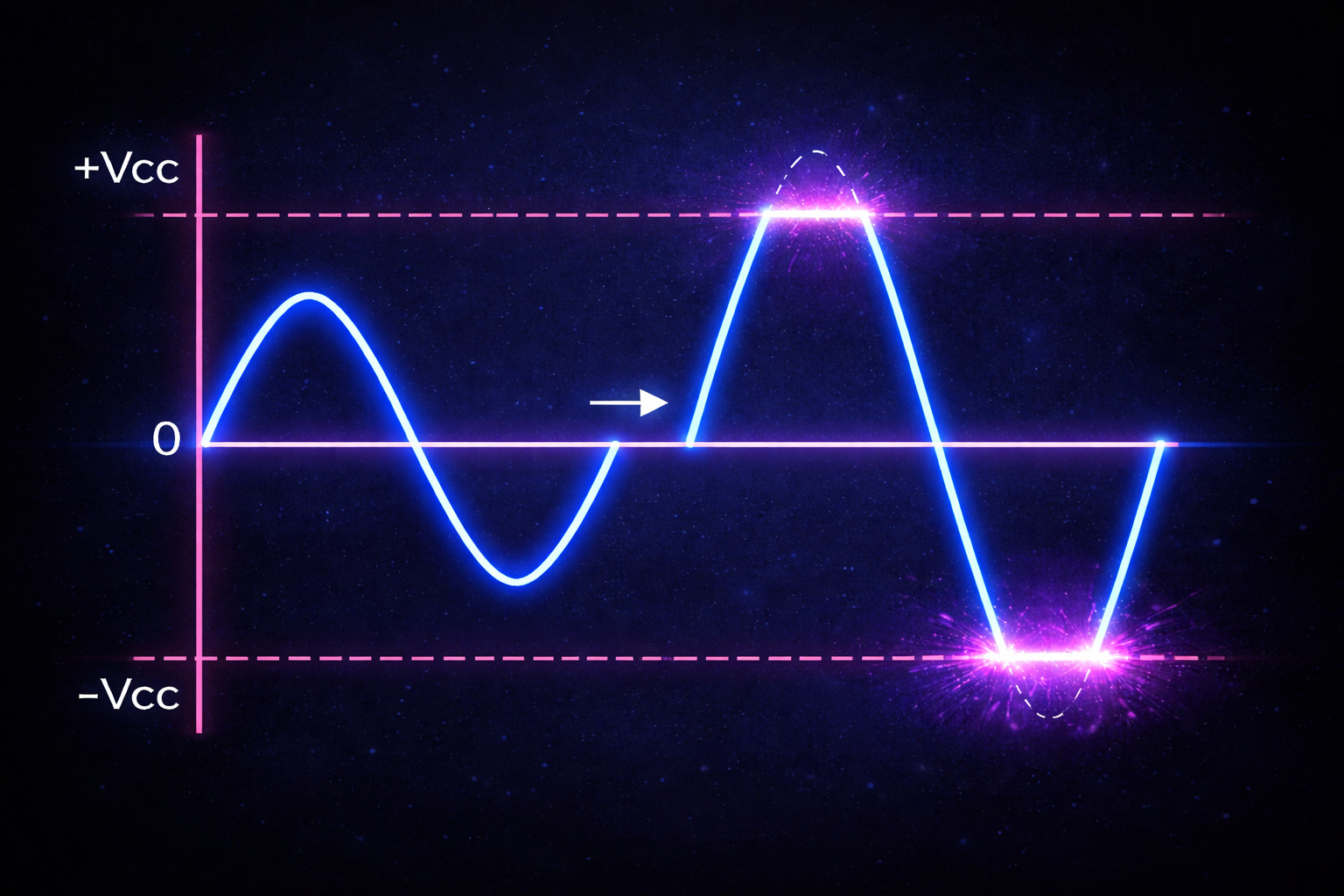

When the Signal Breaks

If the wave pushes beyond the amp's limit, the tops and bottoms are cut flat. That shape change is distortion: the amp is no longer preserving the original signal, it is reshaping it.

• Signal exceeds the amp's limit
• Peaks get cut off
• That reshaping is distortion

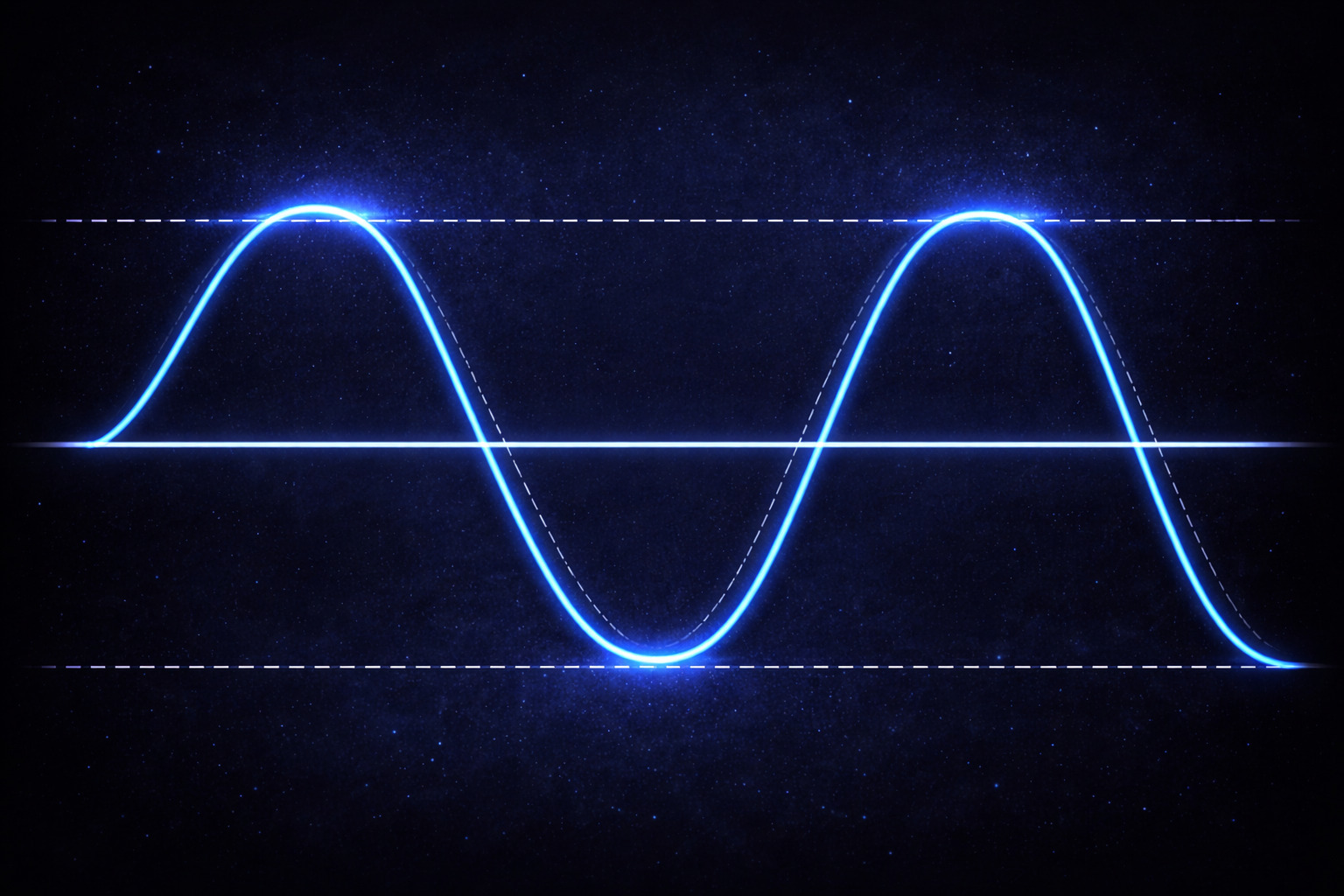

Tube Distortion Rounds the Edges

When tube amps are pushed into distortion, the tops of the wave tend to compress and round off instead of being chopped perfectly flat. That smoother clipping is the behavior players often call overdrive, and it is a big part of why tube breakup feels softer.

• Tube amps still change the shape
• The clipped tops soften and round
• This softer clipping is often called overdrive

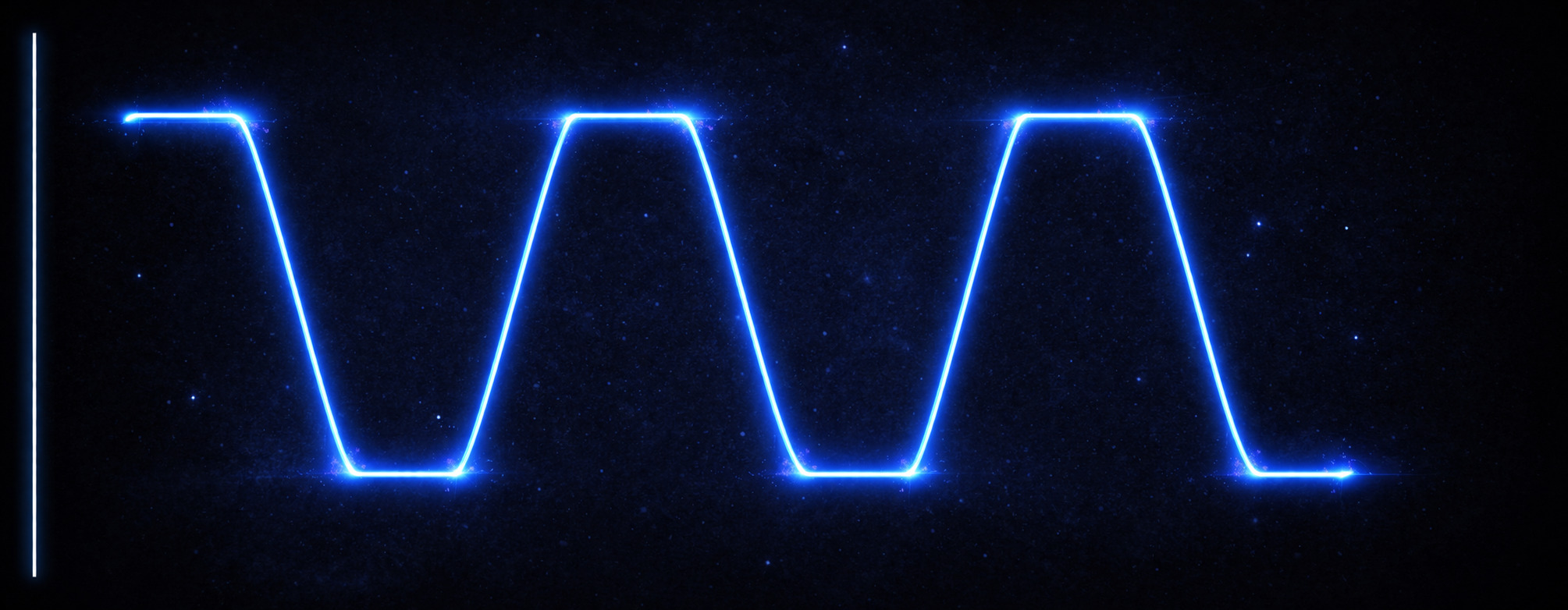

Solid State Distortion Clips Flatter

When a solid state amp runs into its limit, the waveform is often cut off more abruptly. That flatter clipping makes the shape change harder and can sound more rigid or aggressive.

• The limit is hit more abruptly
• The peaks flatten more sharply
• This often sounds tighter and harsher

Bass, Mid, Treble

The EQ knobs do not just make the amp brighter or darker. They boost or reduce different frequency ranges, which changes which pitches hit the gain stage harder.

• Bass, mids, and treble shape different frequency bands
• Boosted frequencies get pushed harder into gain
• That changes distortion by pitch, not just volume

Different Styles = Different Settings

Players boost different parts of the signal depending on what role the guitar needs to fill. The EQ choices can make the same amp feel bigger, sharper, or more vocal.

• More bass can feel bigger and heavier for thick rhythm parts
• More mids can help solos and classic rock tones stand out
• More treble can add bite, sparkle, and attack for clean or cutting parts

Final Signal Leaves the Amp

By the time the signal leaves the amplifier, it has full energy and carries whatever happened inside the amp, whether that stayed clean or became clipped.

• Signal now has full energy
• Includes all changes
• Ready to become sound

Electricity to Motion

Inside the speaker, current travels through a wire coil. That current creates a magnetic field, and the changing magnetic pull pushes and pulls the cone back and forth.

• Current flows through a wire coil
• The coil creates a magnetic field
• That field moves the speaker cone

Moving Air Creates Sound

When the cone moves, it pushes and pulls the air around it. That air movement spreads outward as sound waves.

• Cone moves air
• Air movement = sound waves
• This is what we hear

The Full System

A guitar amp chain takes the small waveform from the guitar, boosts it, limits it if pushed too far, and hands it to a speaker that turns it into air movement.

• Guitar creates the wave
• Gain pushes it and wattage limits it
• Speaker turns it into sound
