Learn Guitar Pickups

A visual walkthrough of how pickups turn string motion into signal, why designs sound different, and what makes classic pickup types distinct.

Physics Magnetic fields, induction, and signal flow
Design Magnets, wire turns, and pickup construction
Tone Why pickup choices change feel and sound
Electromagnetic Induction

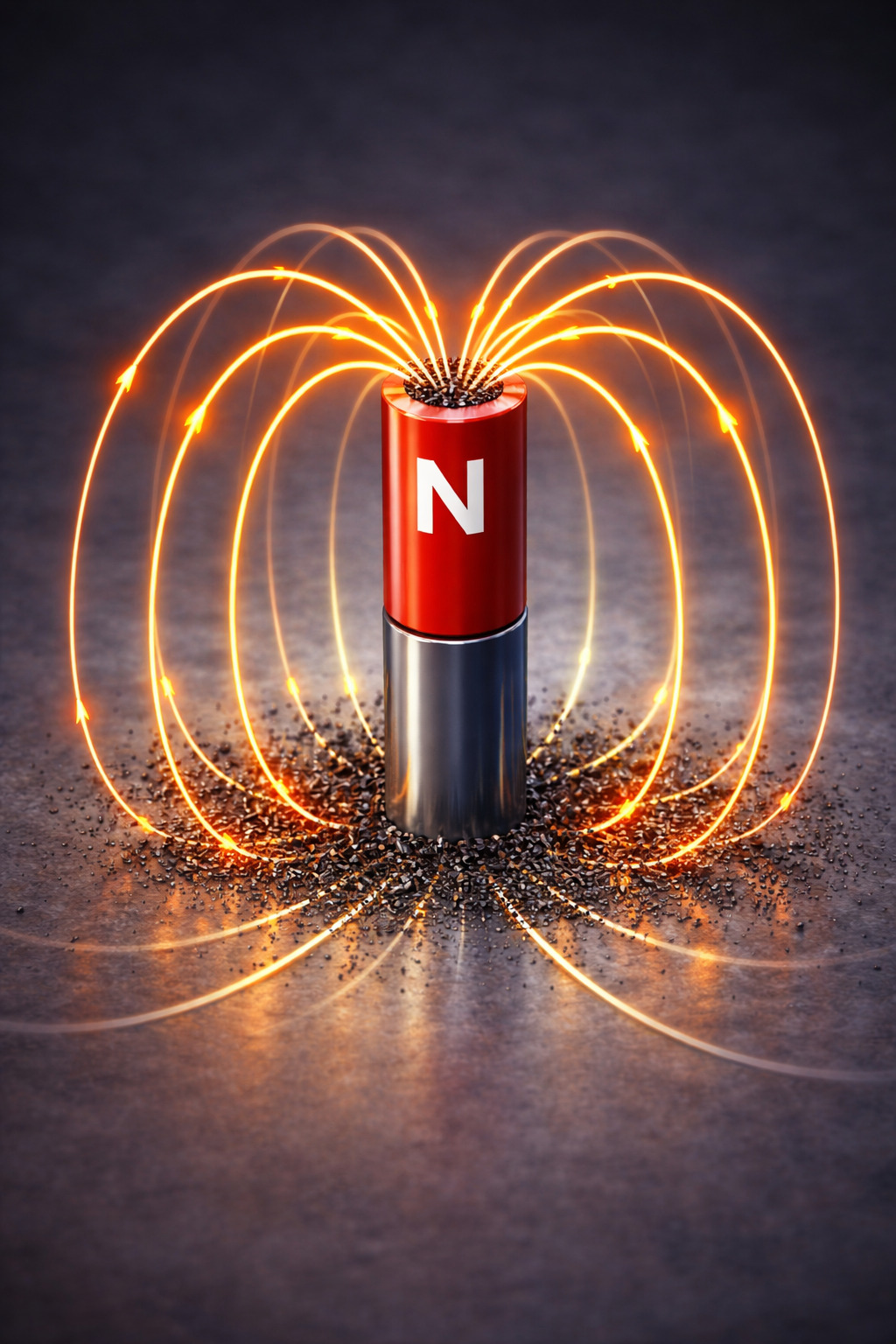

Magnets Have an Aura

Magnets create an invisible magnetic field around themselves. Guitar pickups rely on that field being present before anything can be sensed.

Think of it as an invisible zone around the pickup where nearby metal can affect what the magnet is doing.

Key Idea

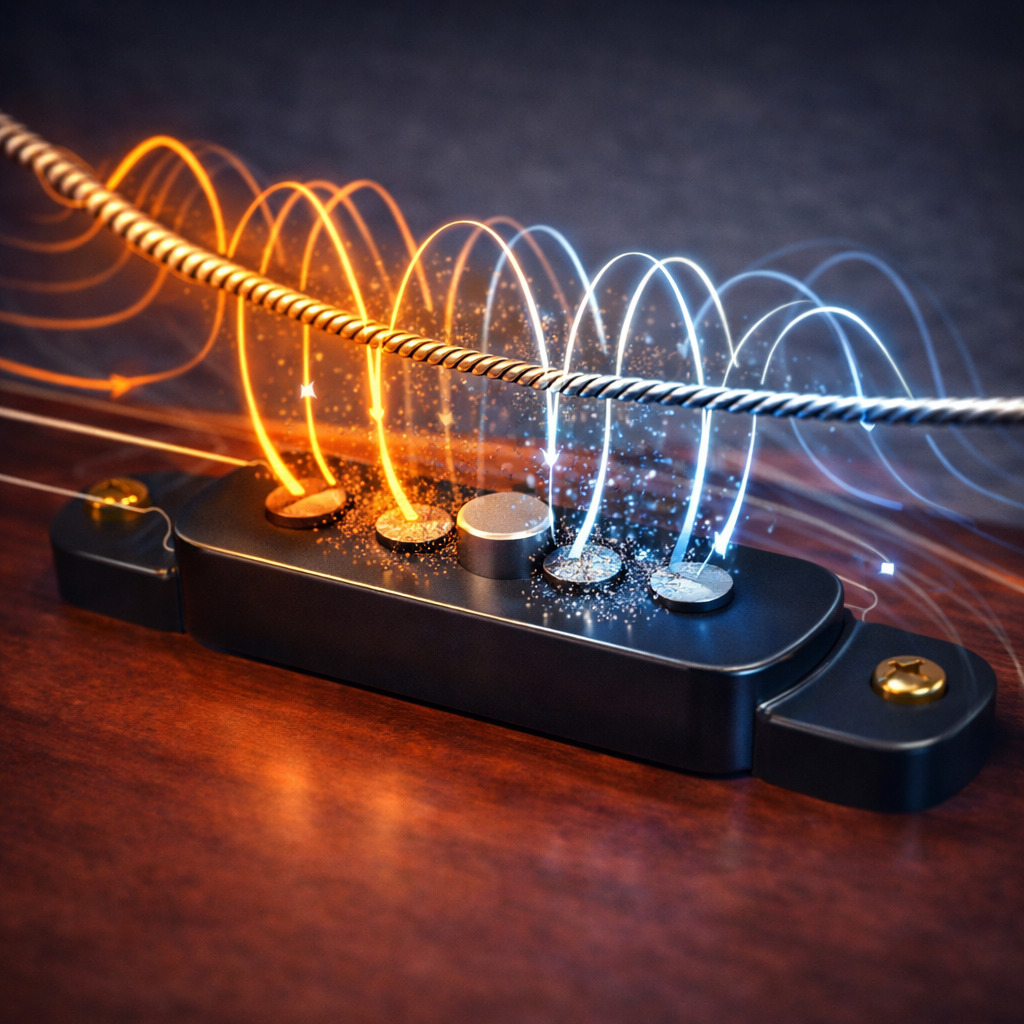

Moving Metal Disturbs the Field

When a ferromagnetic string, usually steel or nickel-steel, vibrates inside that magnetic field, it changes the shape and strength of the field over and over.

The string has to be ferromagnetic so the pickup magnet can influence it. If the string does not respond to magnets, the pickup has almost nothing to detect.

Key Idea

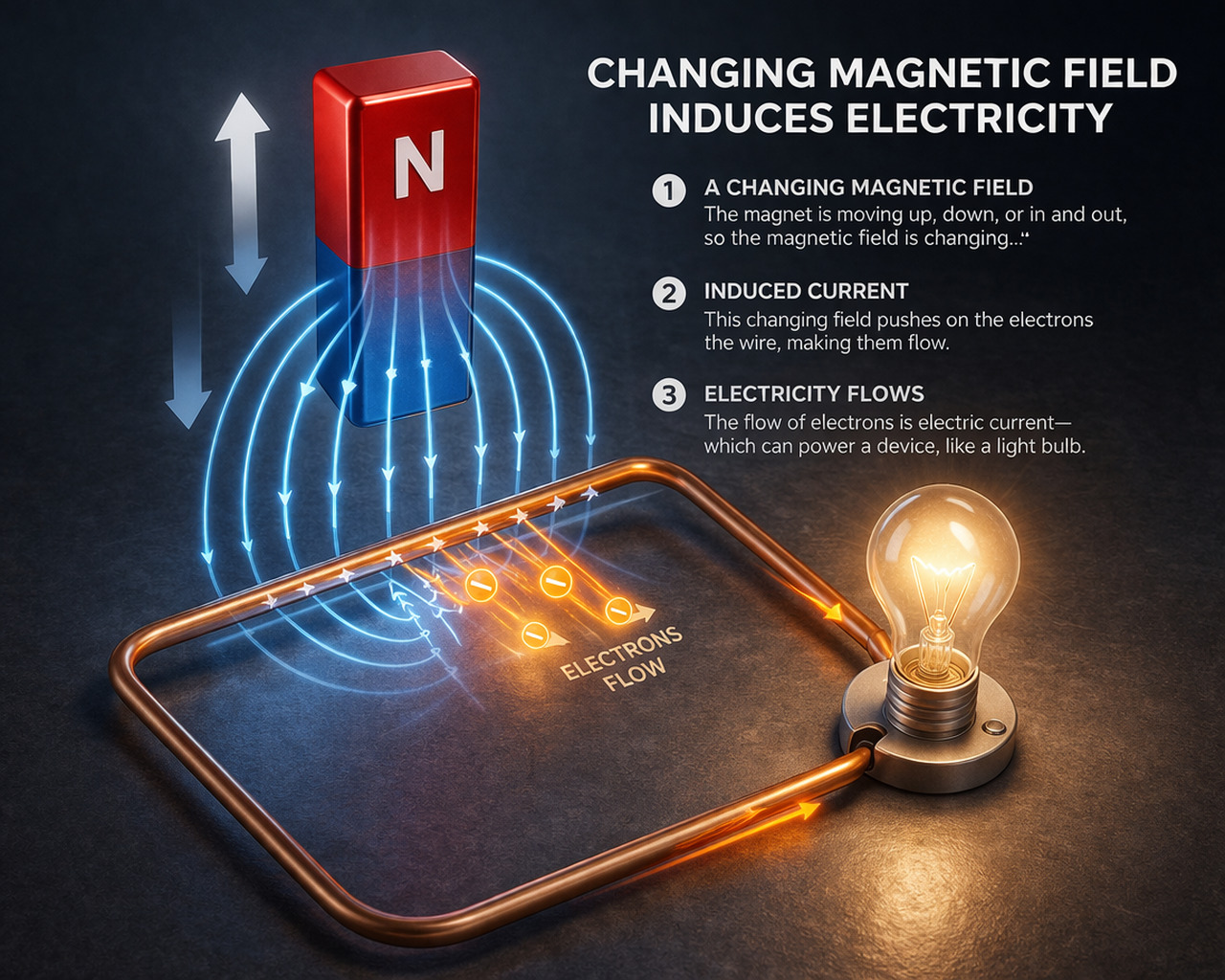

Changing Fields Push Electricity

A changing magnetic field can drive electric current through metal. In a pickup, that changing field is what creates the signal your amp receives.

No change in the field means no signal. Motion is the whole reason the pickup can hear the string.

Pickups and EMI

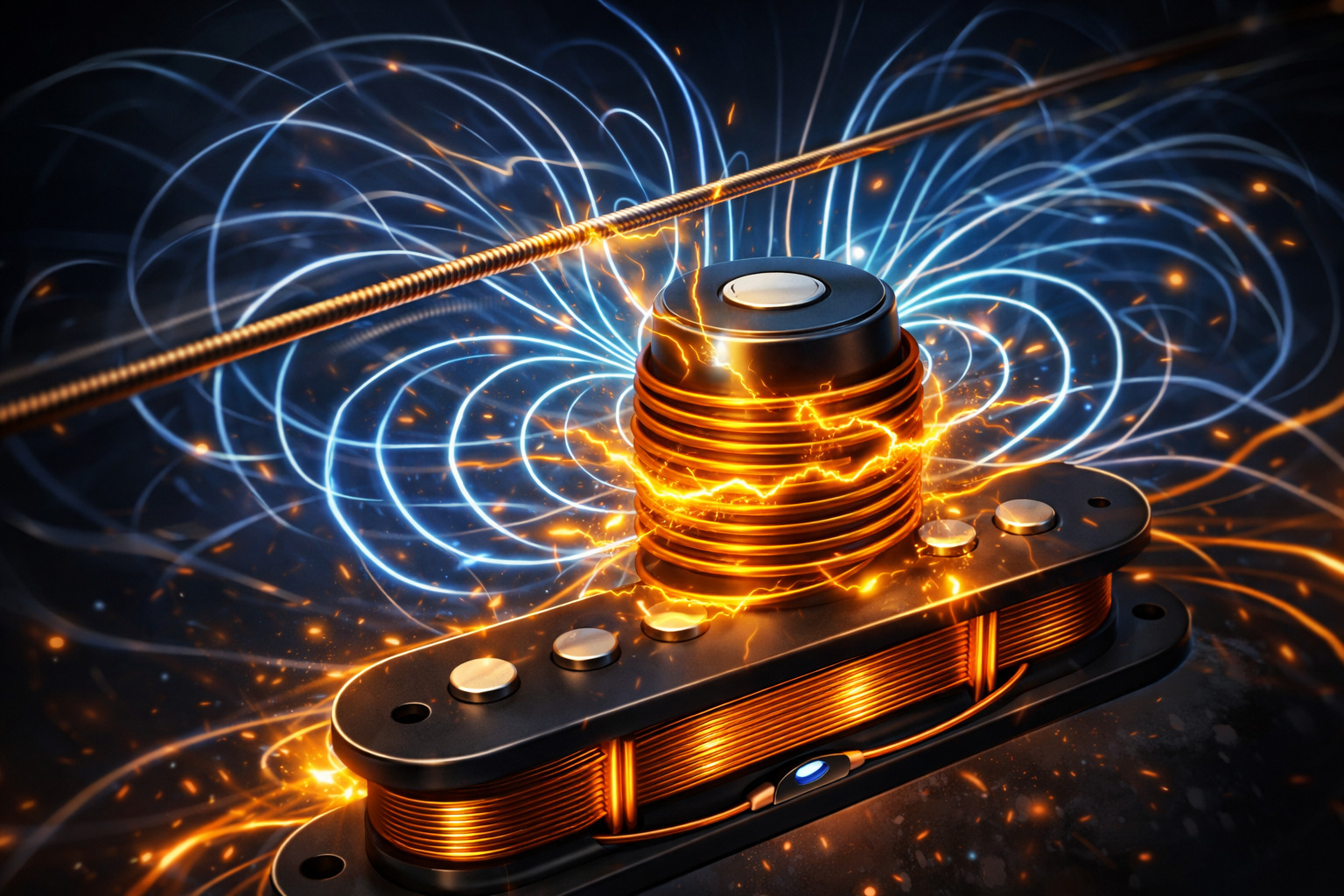

Wrap a Magnet in Wire

A pickup uses electromagnetic induction by wrapping wire around a magnet. When the magnetic field changes, that coil turns the change into an electrical signal.

The magnet creates the field and the coil is where the current appears. Together, they form the basic pickup.

Key Idea

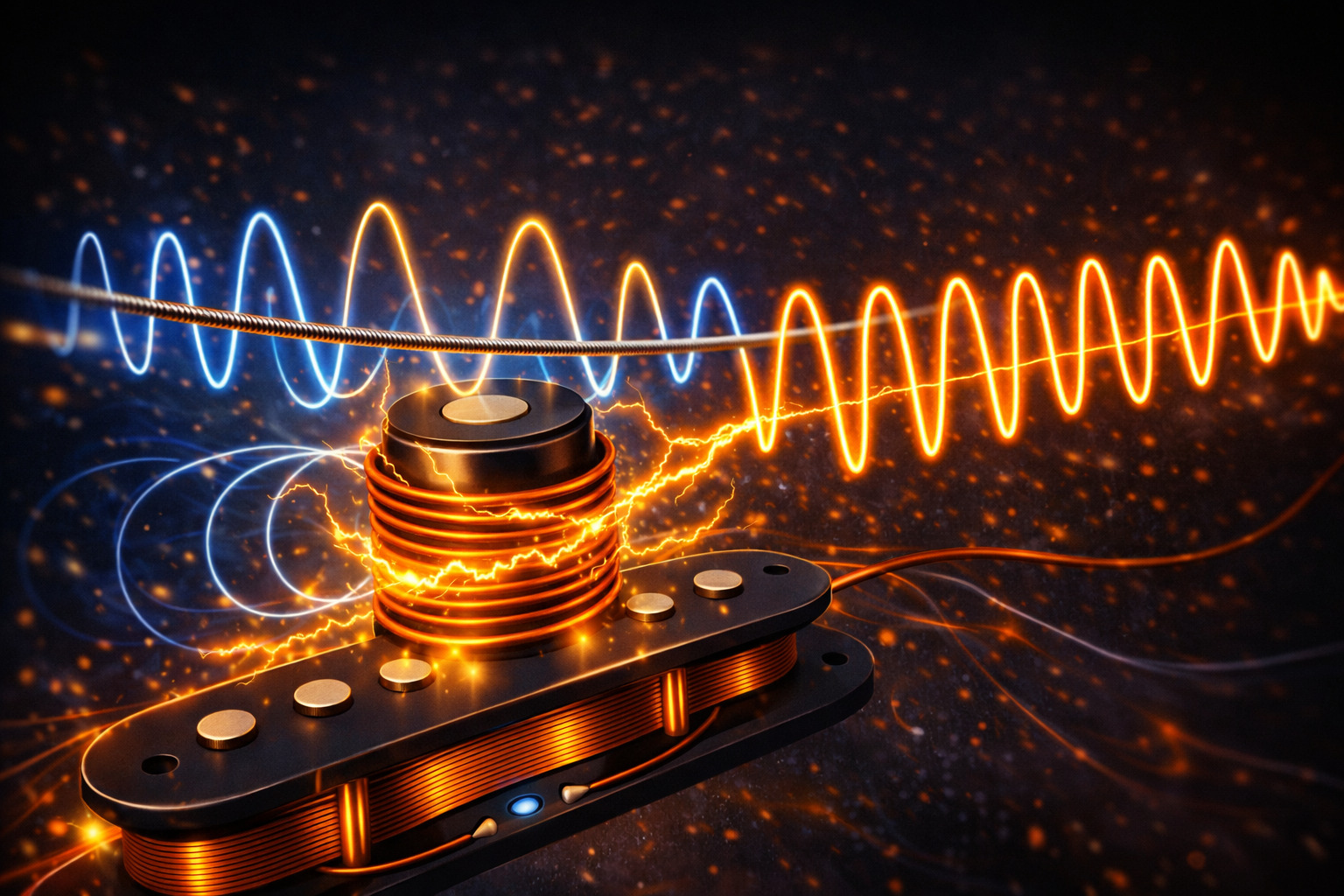

The Signal Matches the String's Frequency

As the string vibrates back and forth, the pickup creates an alternating electrical current with the same frequency pattern as the string's motion.

If the string vibrates faster, the electrical signal also oscillates faster. That is how the note's pitch gets carried to the amp.

Pickup Variations

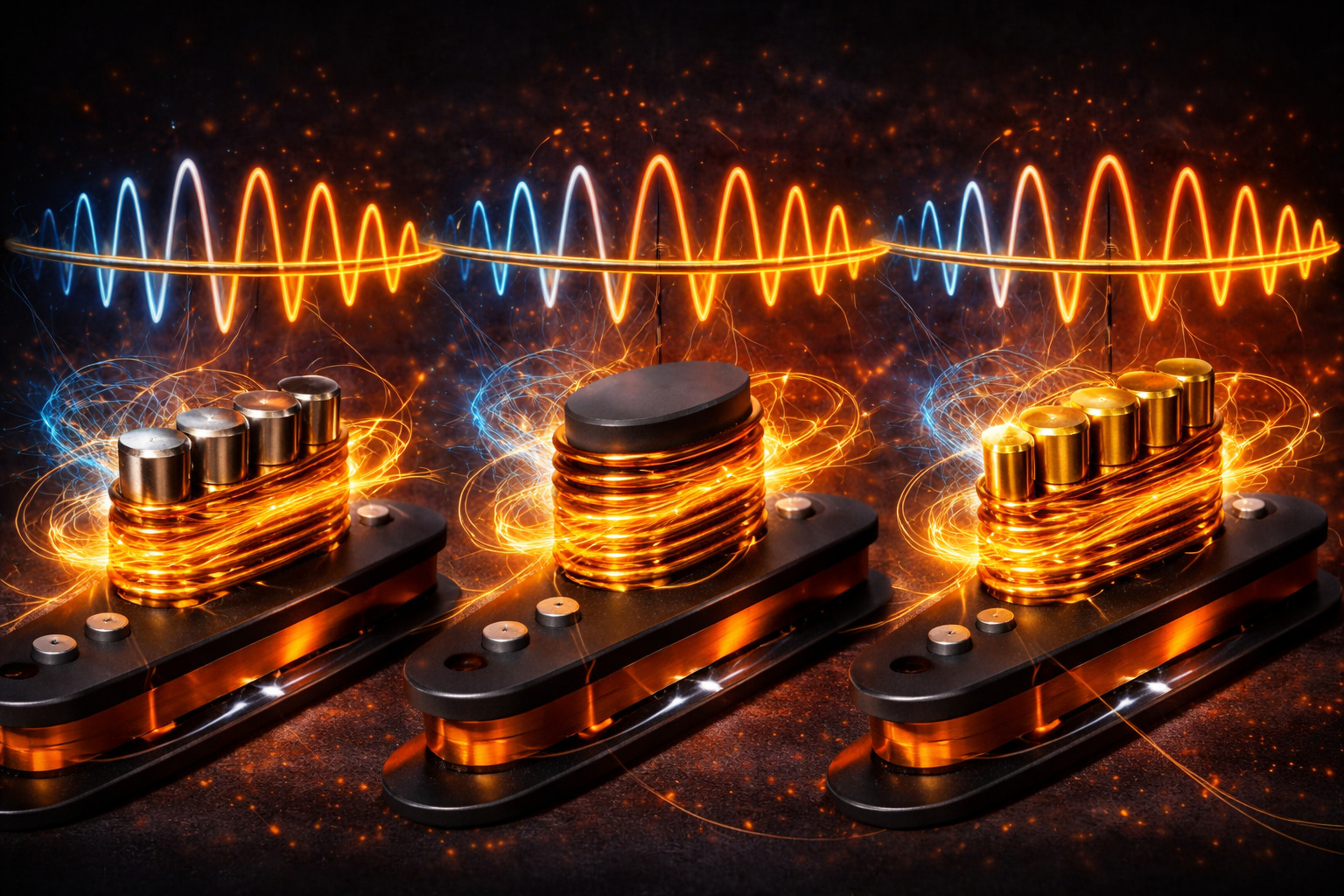

Magnets Change What the Pickup Hears

Different magnet materials and magnet sizes change how strongly the string is sensed. A stronger or larger magnetic setup can pull harder on the string and respond differently to its motion.

That affects attack, output, and the overall feel of the pickup. The magnet is part of the pickup's voice, not just a support piece.

Key Idea

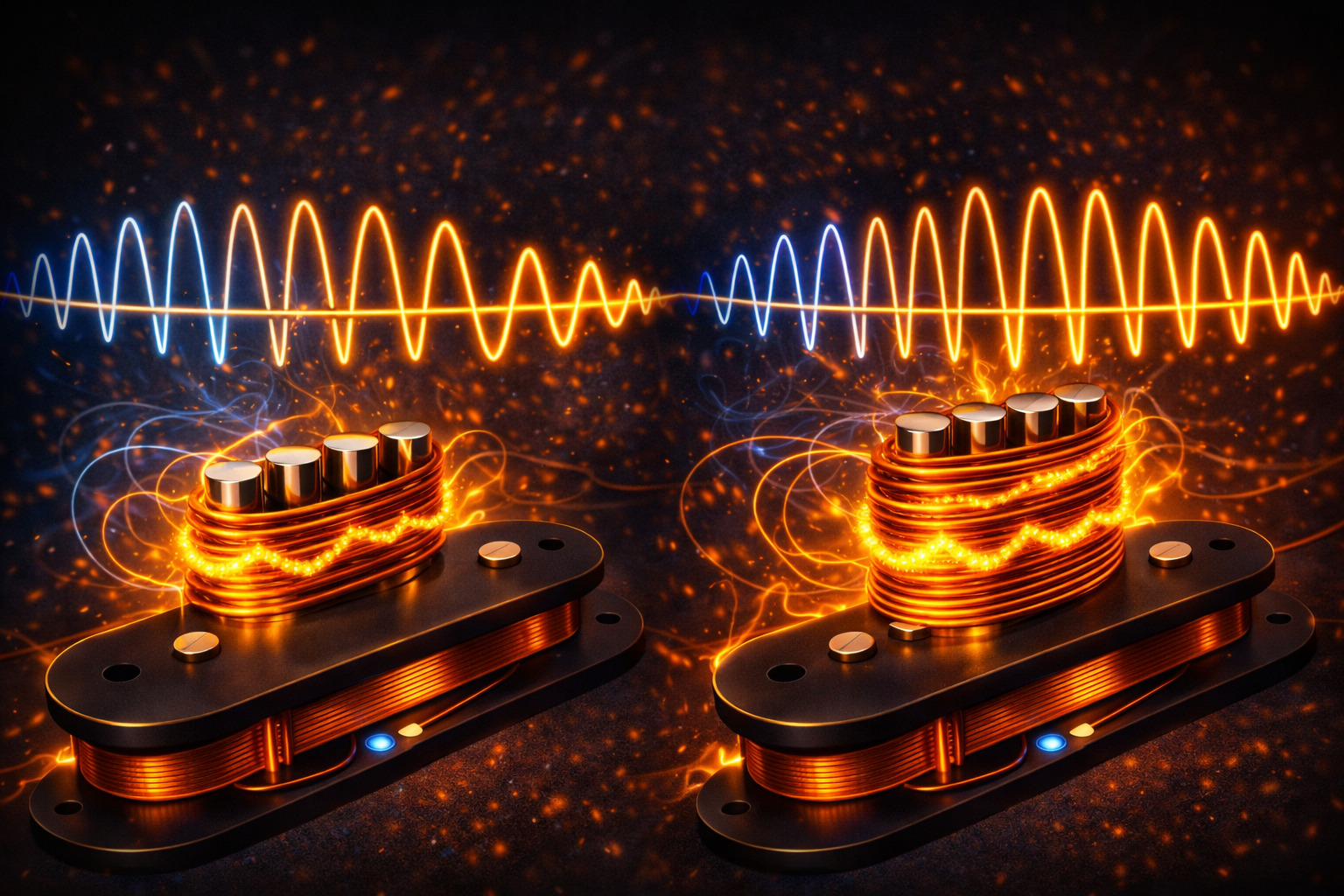

More Wire Turns Change the Signal

The number of turns of wire around the pickup affects the electrical signal it produces. More turns usually mean higher output and a different tonal balance.

Fewer turns can sound more open and clear. More turns can sound thicker, stronger, and often darker.

Comparison

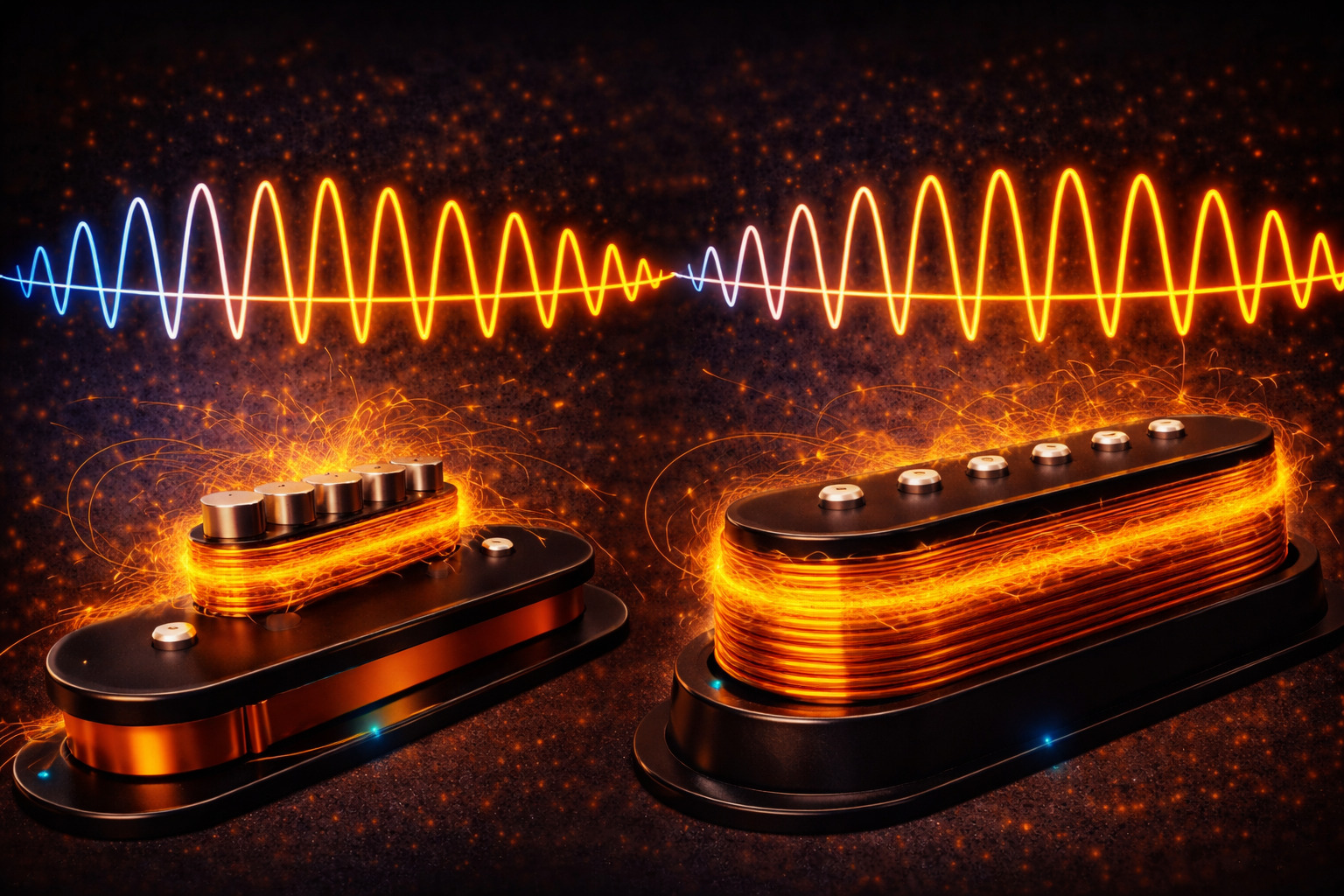

Single Coil vs P-90

A P-90 is still a single-coil pickup, but it is wider and usually wound differently than a typical Fender-style single coil. That gives it a thicker, punchier sound.

Traditional single coils are often brighter and more focused. P-90s tend to sound fatter in the mids while still keeping single-coil bite.

Fun Fact

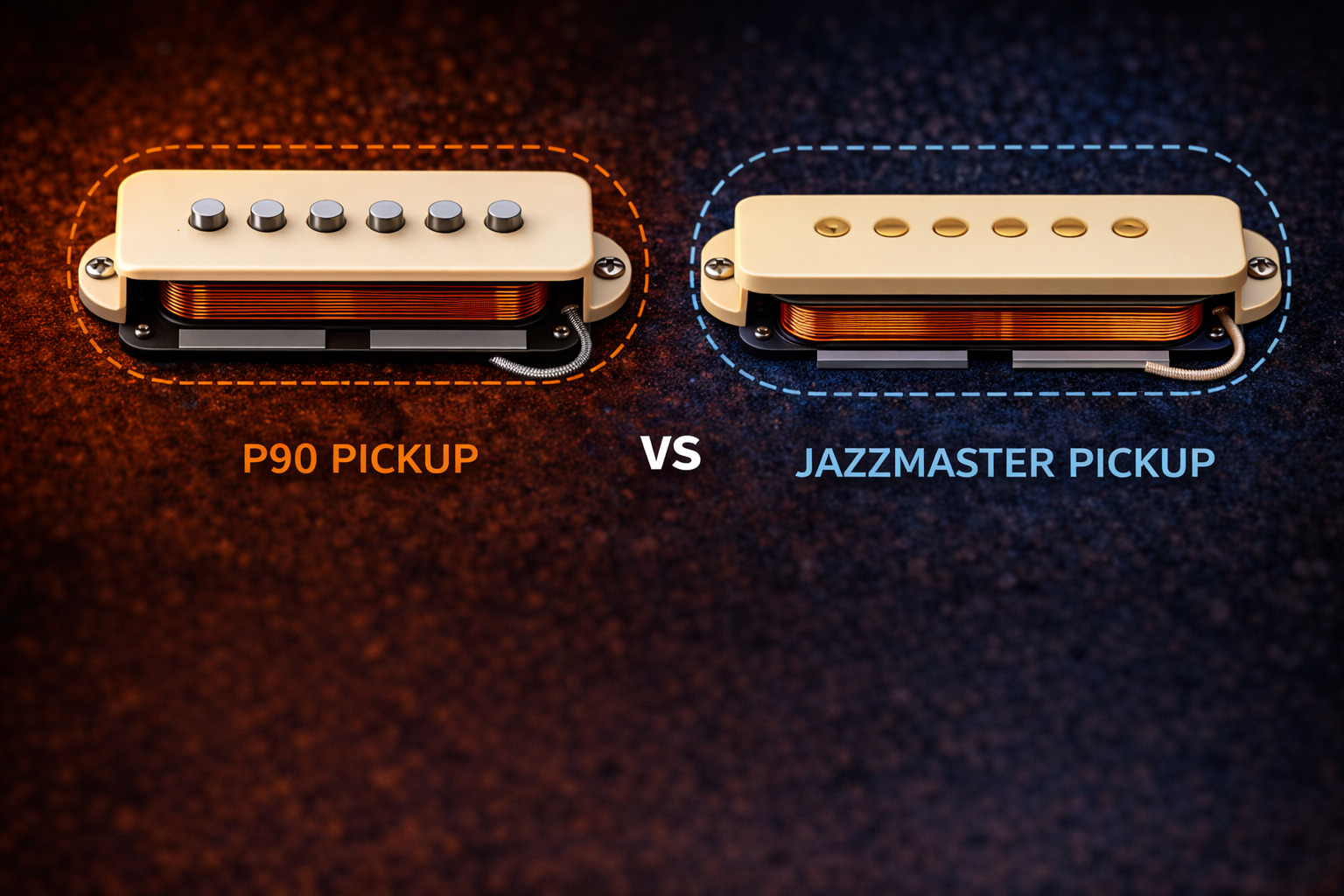

Jazzmaster Pickups Are Not Just P-90s

True Jazzmaster pickups are also wide, but they are built differently from P-90s. Their flatter, broader coil gives them a more airy and expansive sound instead of the denser push of a P-90.

That is why Jazzmasters can sound big and open at the same time. Similar size does not mean the same pickup design.

Fun Fact

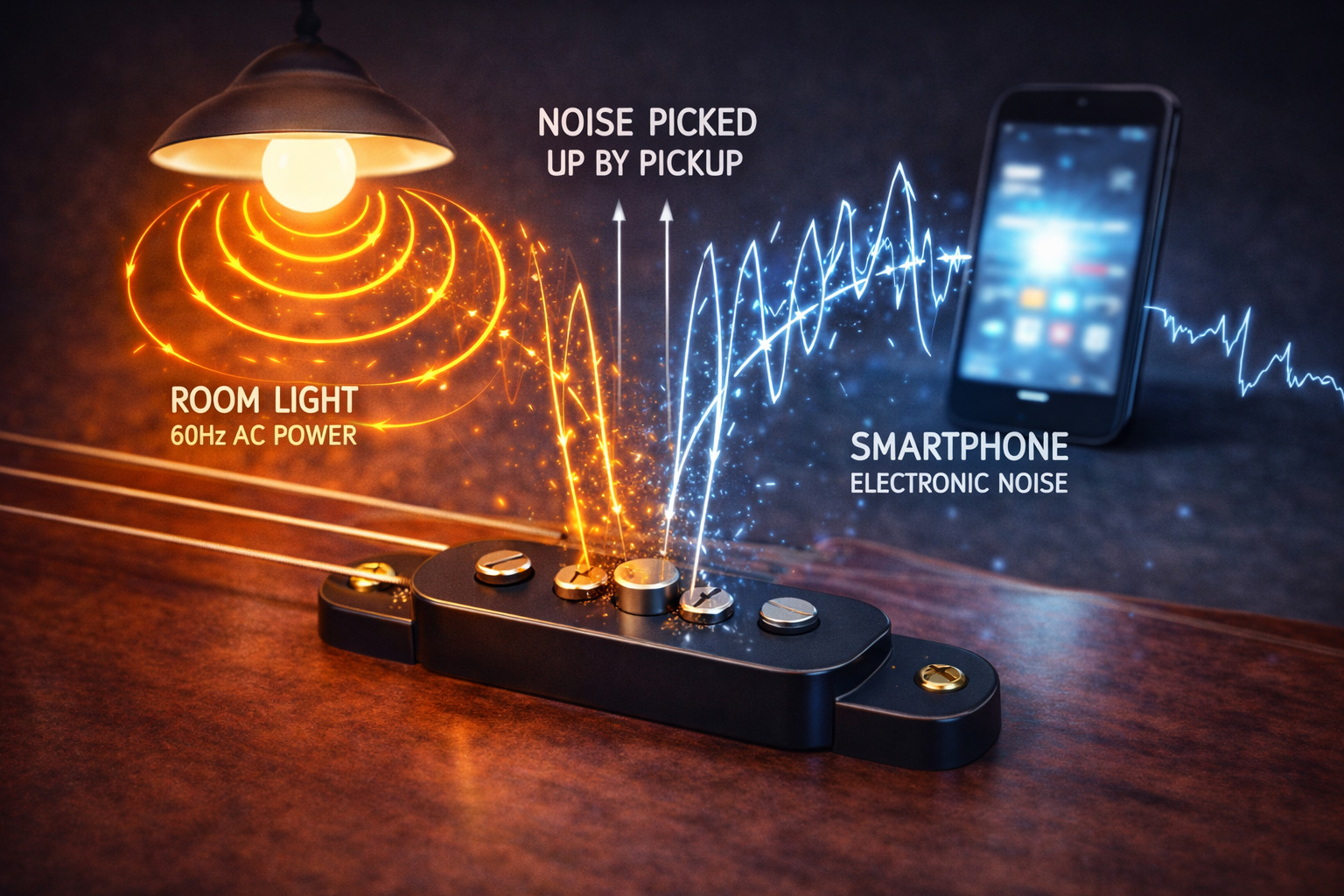

Noise Is Unwanted Signal

Pickups can react to tiny outside disturbances, not just the string. Electrical currents in the room, lights, and even a phone nearby can add a little extra signal.

That interference is usually small, but the pickup does not know it is unwanted. It hears a changing field and turns it into sound anyway.

Fun Fact

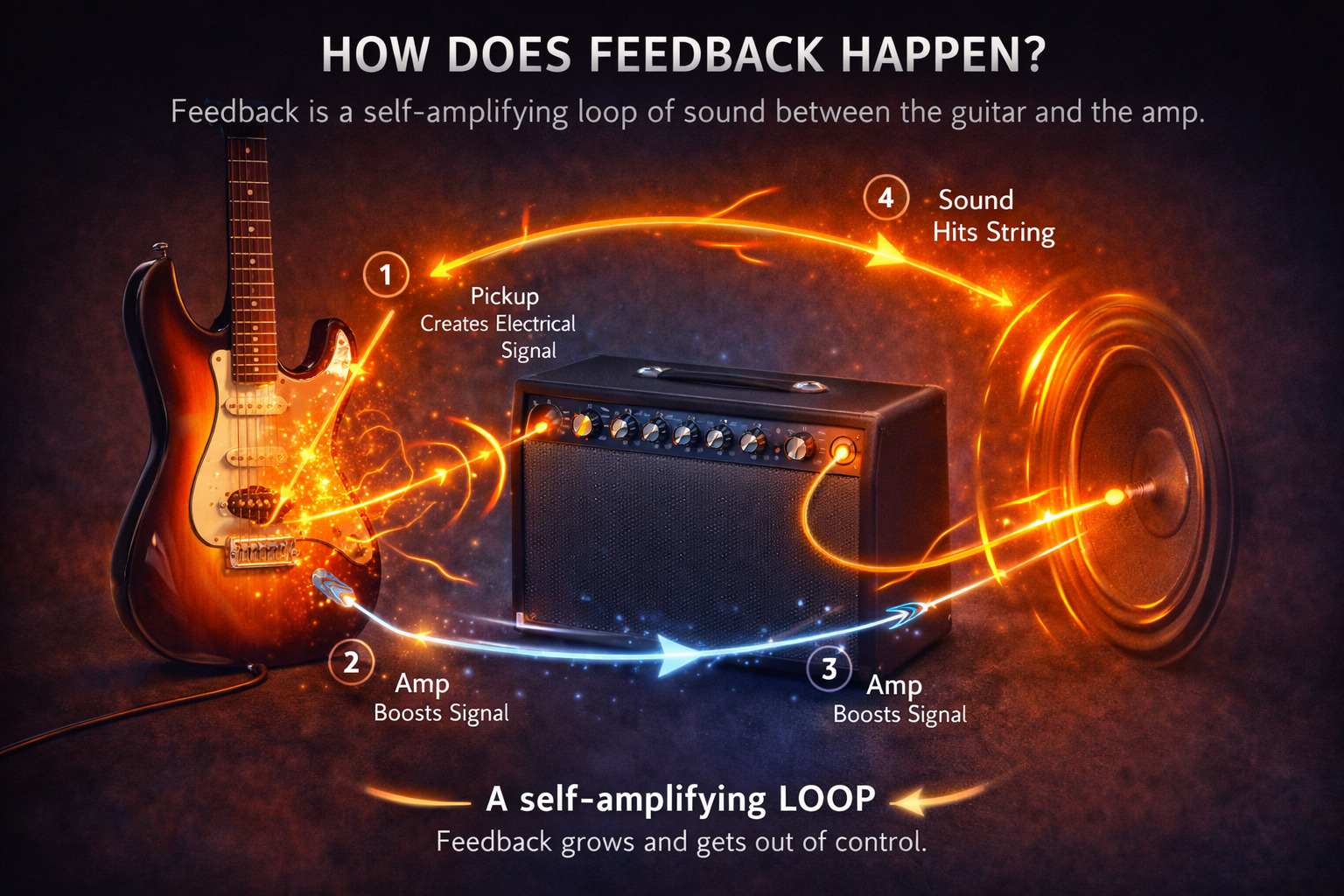

Feedback Is Runaway Noise

Feedback happens when sound from the amp is strong enough to shake the string again. The pickup hears that new vibration, sends it back to the amp, and the loop keeps growing.

It is the same pickup physics, just much stronger. Instead of a tiny disturbance, the speaker creates enough motion to re-excite the guitar.

Buck the Hum

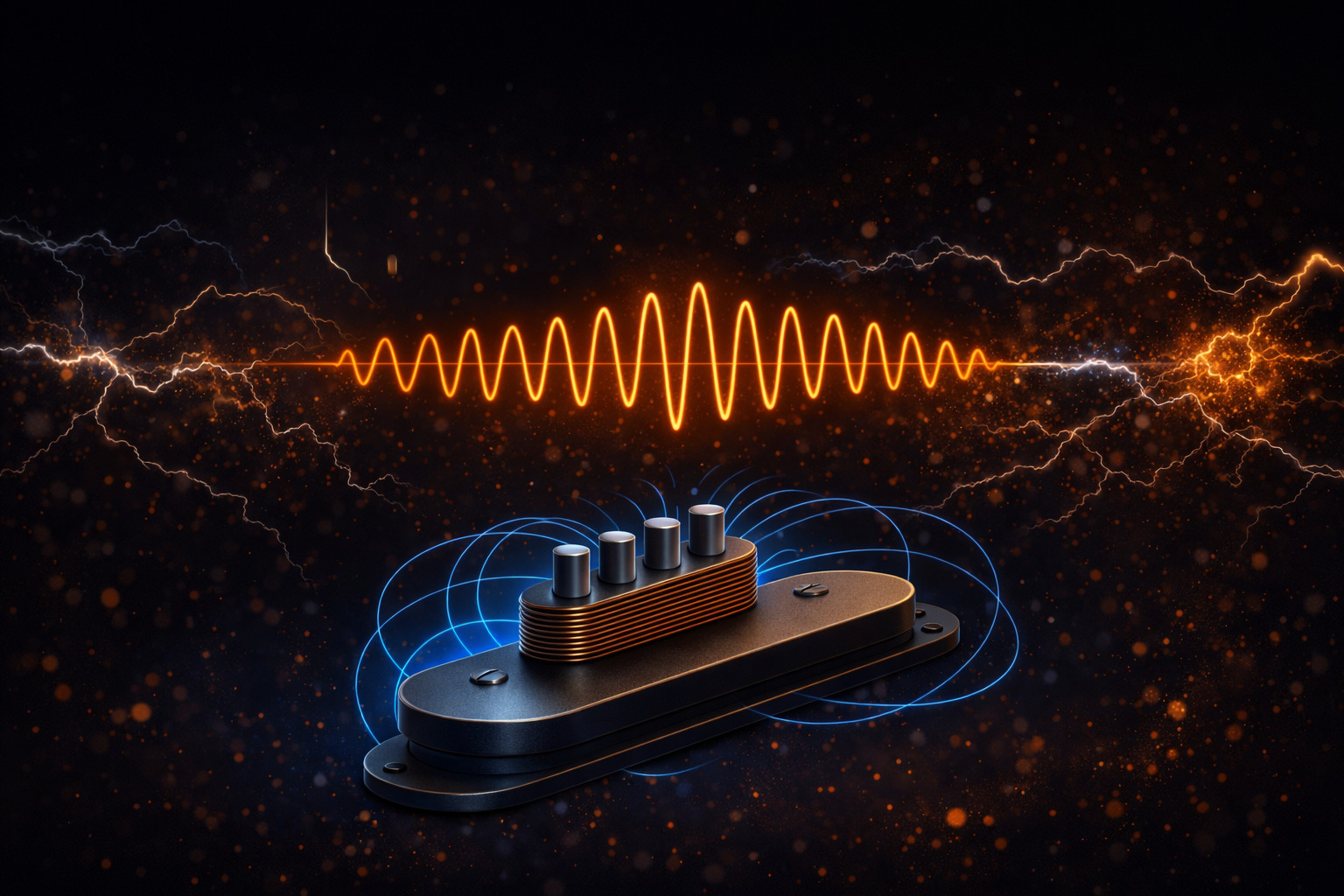

Single Coils Are Bright but Noisy

Traditional single coils are loved for their clear, chiming sound, but they also pick up more background hum and interference than players often want.

That is the tradeoff: lots of sparkle and attack, but also more susceptibility to electrical noise in the room.

What Noise Looks Like

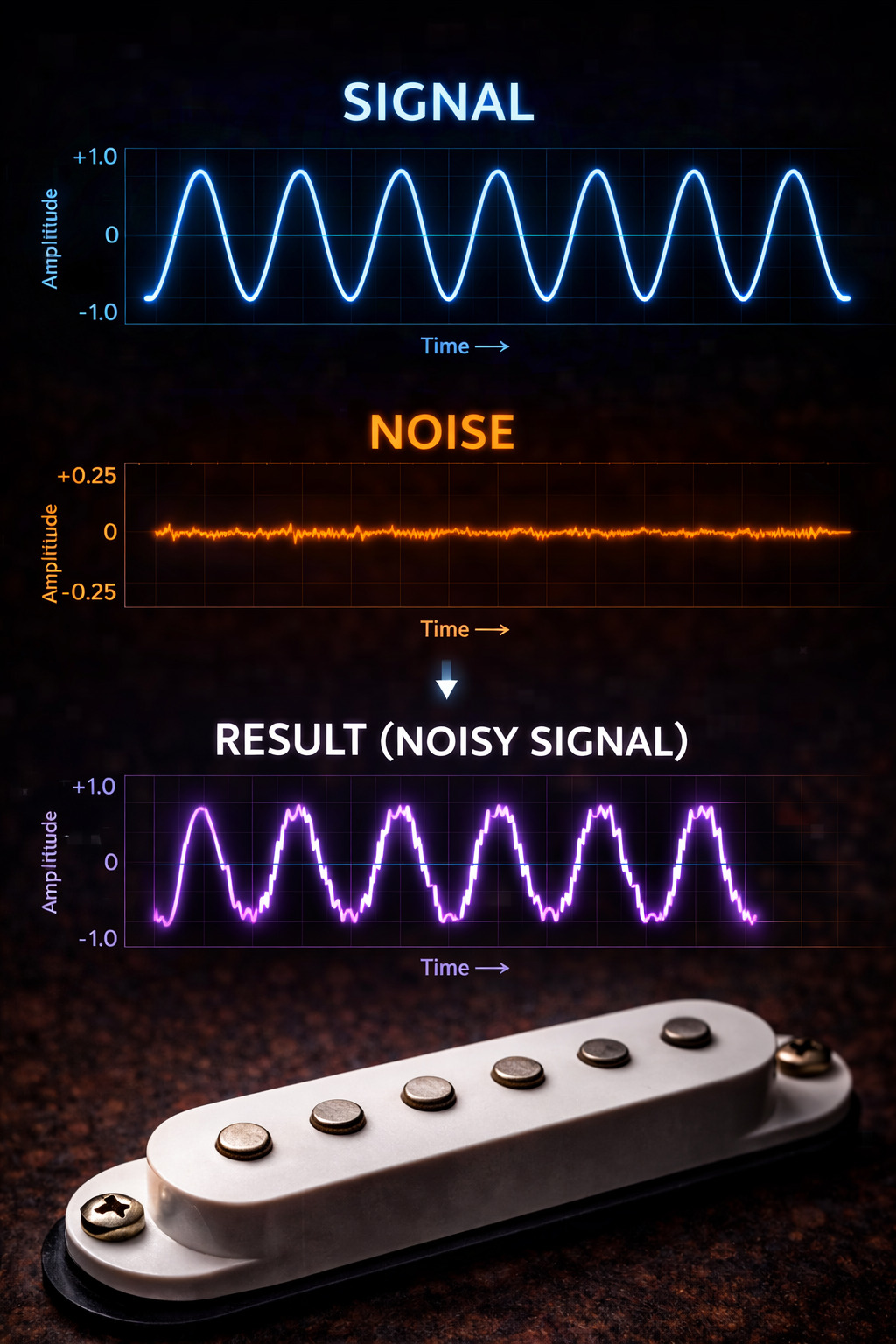

Noise Adds Extra Wiggles to the Wave

In the actual electrical signal, noise shows up as extra unwanted movement riding on top of the note. Instead of a clean wave, the shape gets rougher and more cluttered.

The pickup is still carrying the note, but interference adds little bumps and irregular motion that your amp also reproduces.

Key Idea

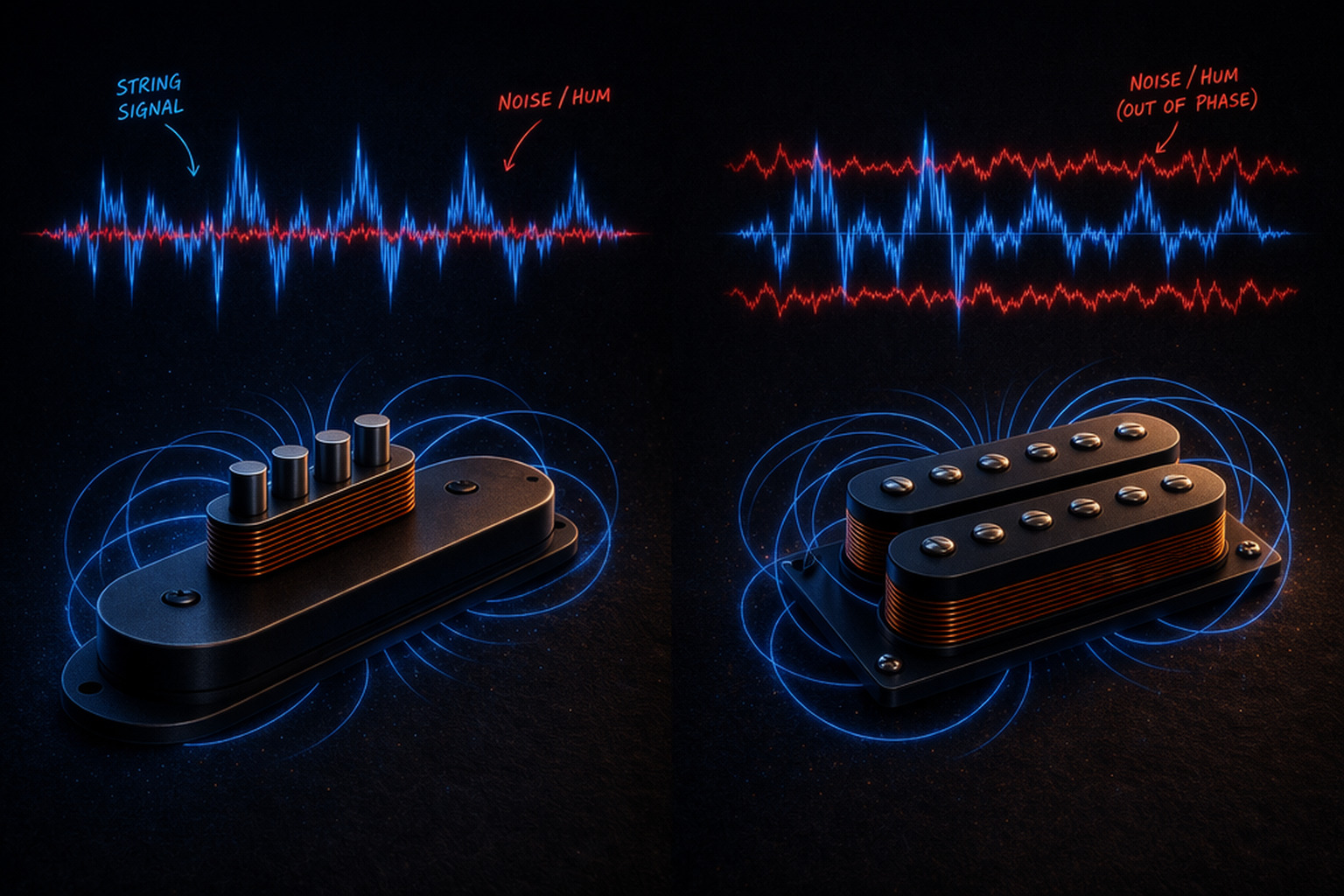

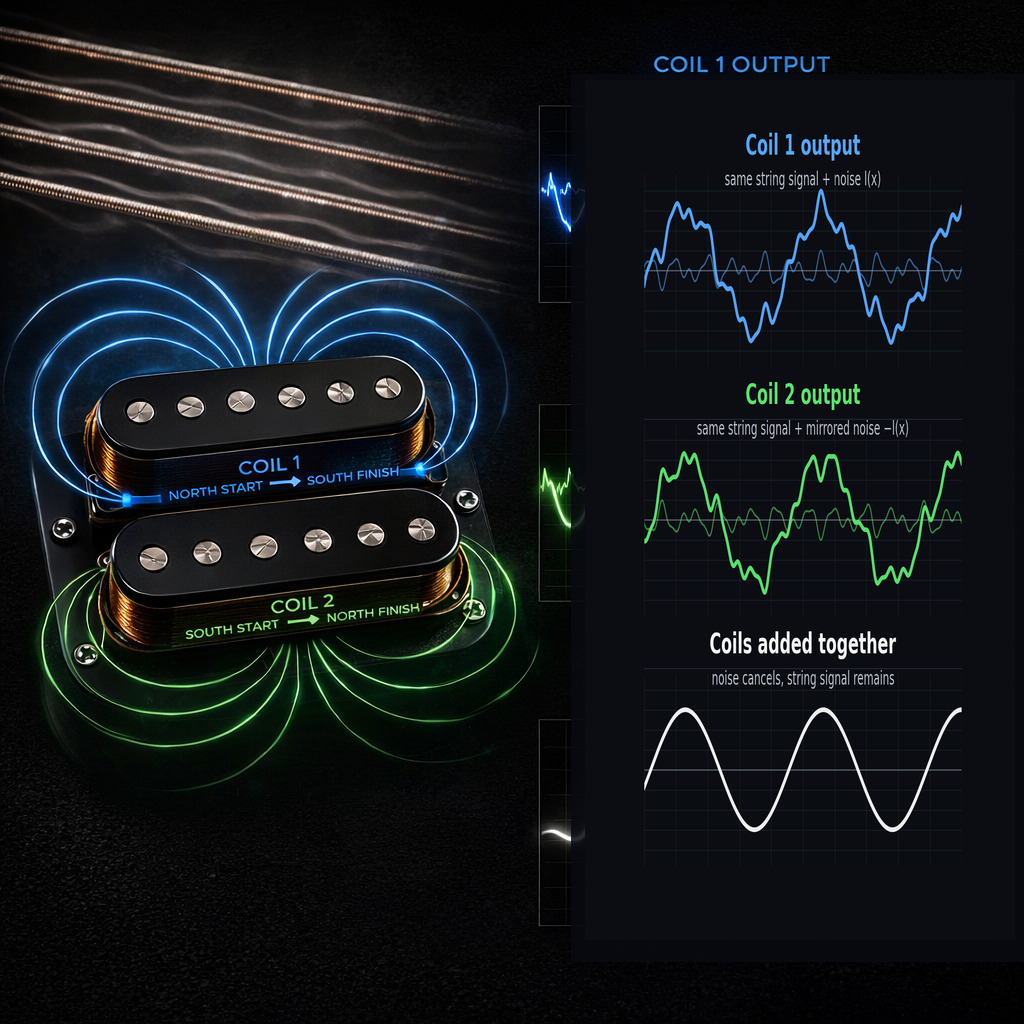

Reverse the Other Coil and the Hum Can Cancel

If you add a second coil that is wound and magnetized in the opposite way, much of the shared noise can cancel out when the two signals are combined.

The string signal is preserved, but the unwanted hum is reduced because both coils hear the interference in a way that can be subtracted.

Key Idea

Humbuckers Use Two Coils to Buck the Hum

A humbucker is basically two coordinated single coils working together. Their opposite winding and polarity help reject hum while producing a thicker, fuller pickup sound.

That is why humbuckers are quieter than normal single coils and often sound broader and more powerful.

Why Players Choose It

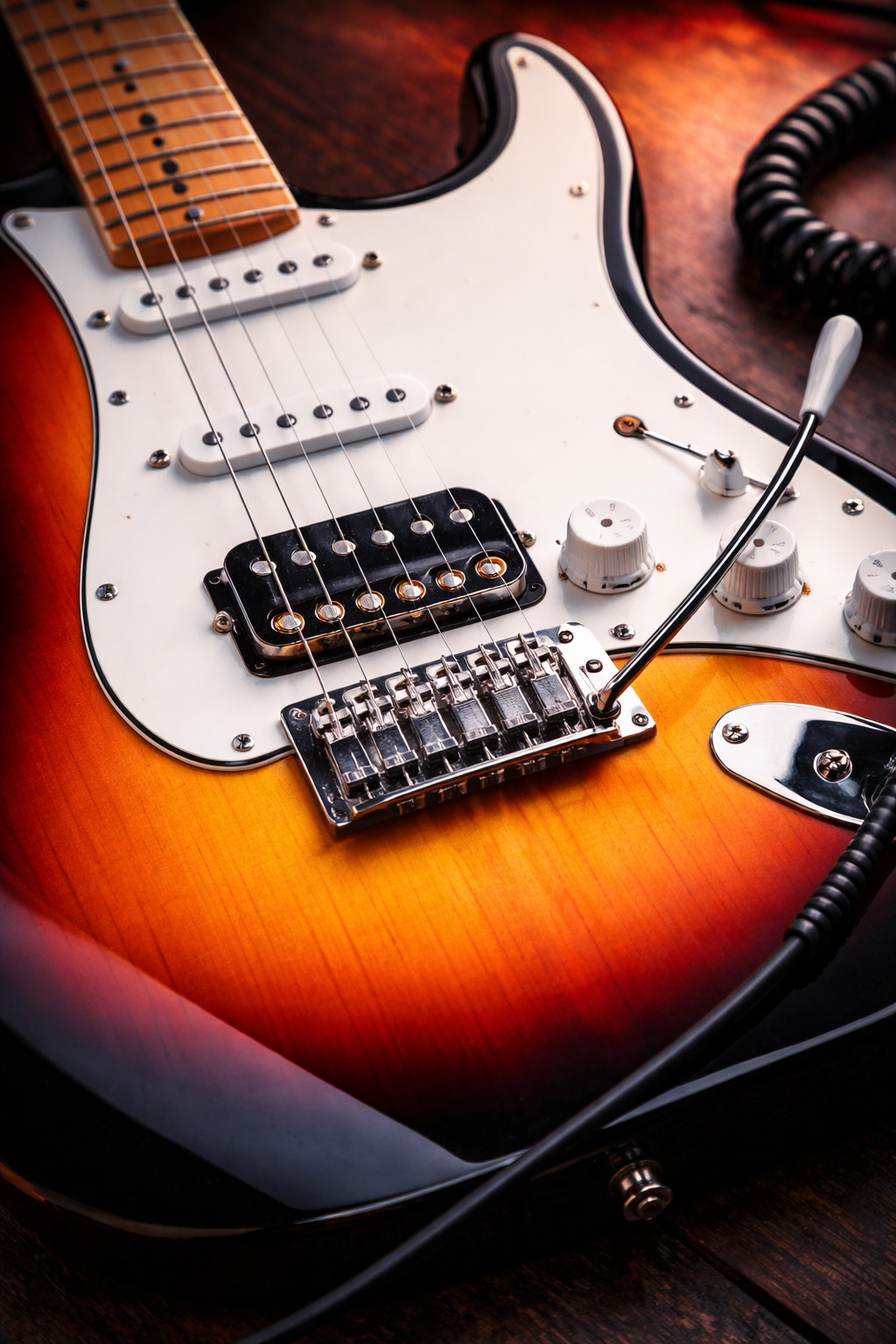

Why the Bridge Often Gets a Humbucker

Many players like a humbucker in the bridge because the bridge position already sounds tighter and brighter. A humbucker adds more body, more output, and smoother highs there.

That is why HSS Strats are common: single coils keep the neck and middle sparkle, while the bridge humbucker gives a stronger rock tone.

Fancy Styles

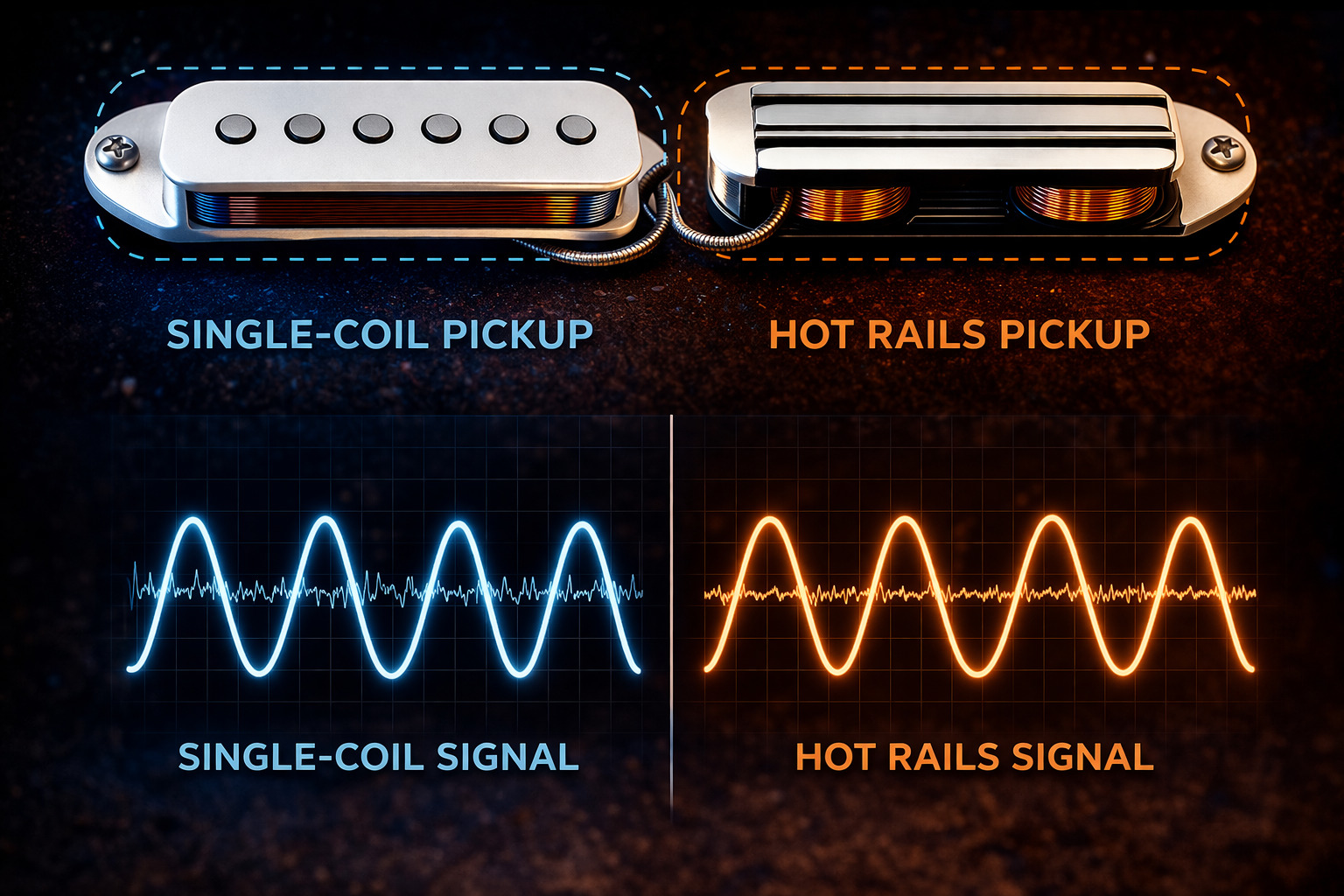

Hot Rails Pack Humbucker Ideas into a Single-Coil Slot

Hot rails squeeze hum-cancelling pickup design into the footprint of a single coil. The rails let them fit tight spaces while still delivering a thicker, hotter signal.

They are often preferred for higher-gain playing because they sound warmer and deeper than a bright vintage-style single coil.

Fancy Styles

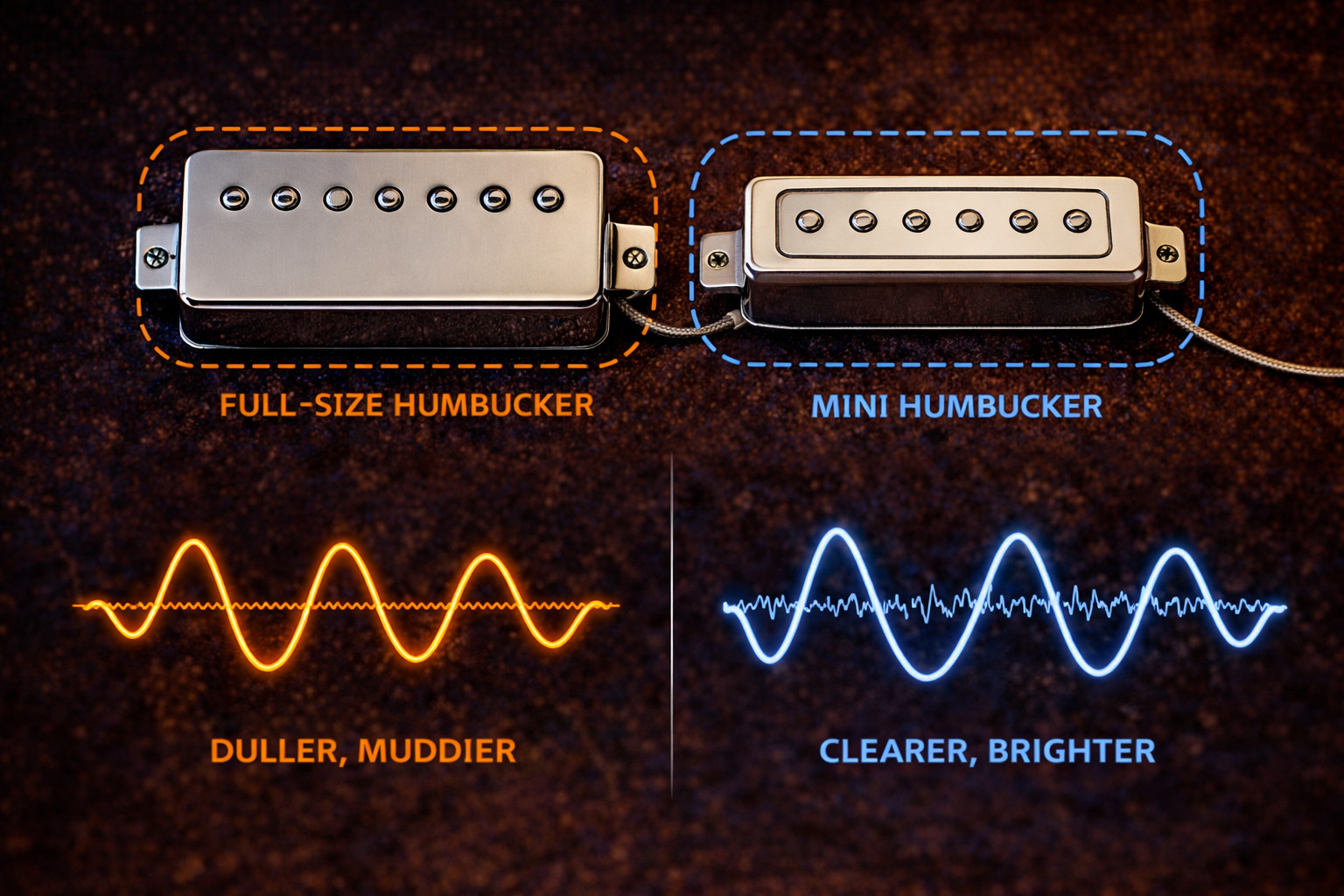

Mini Humbuckers Stay Clearer and Brighter

Mini humbuckers are physically smaller than full-size humbuckers, and that smaller footprint helps them keep more clarity and bite while still rejecting hum.

They are often chosen when someone wants Gibson-style power with a little more Fender-like snap and definition.

Fancy Styles

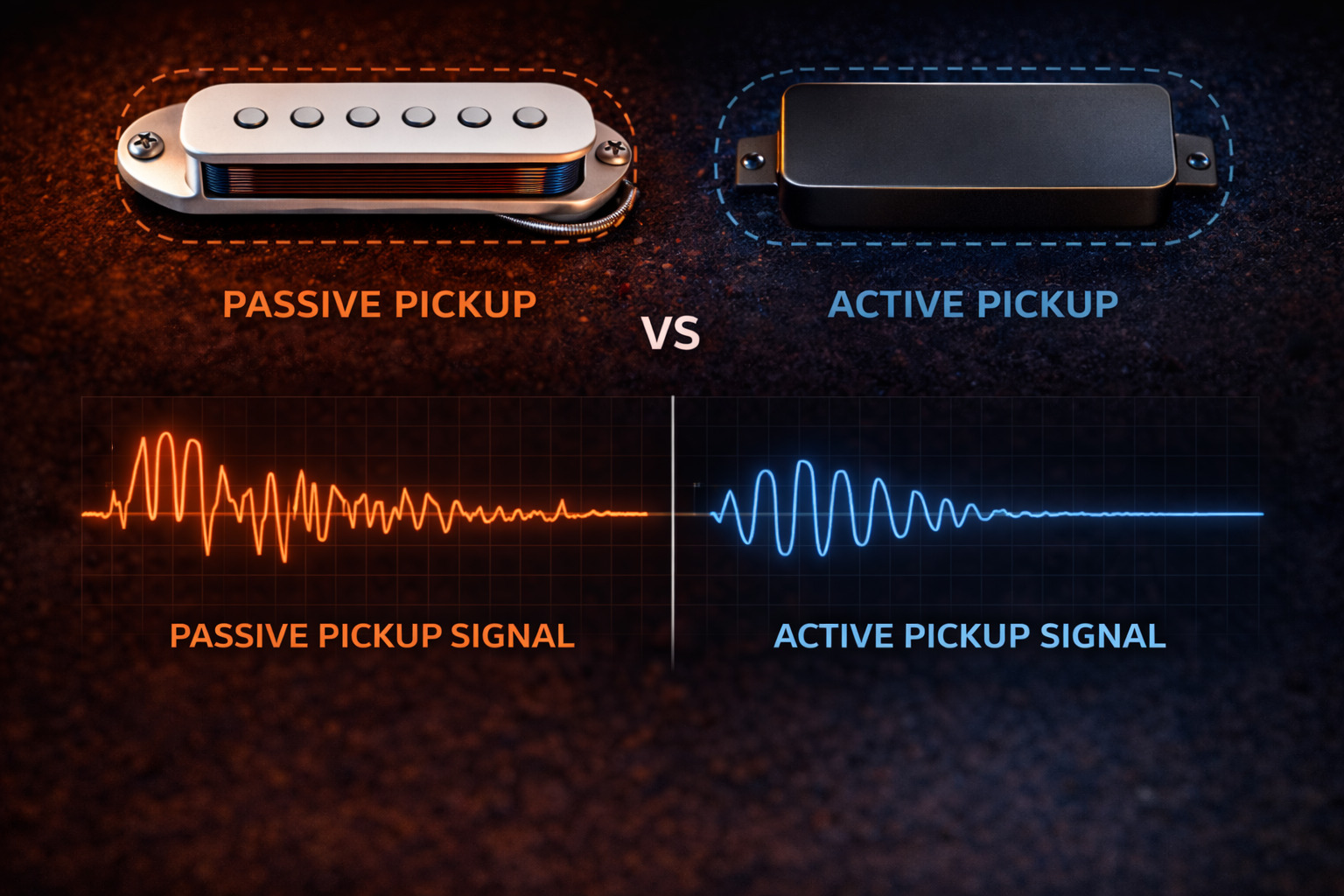

Active Pickups Add a Built-In Preamp

Active pickups usually use a 9-volt battery to power an onboard preamp. That lets them shape and boost the signal right at the pickup before it reaches the amp.

They are often preferred for tight, high-output sounds and can be less susceptible to interference because the signal is actively buffered and controlled.

Fancy Styles

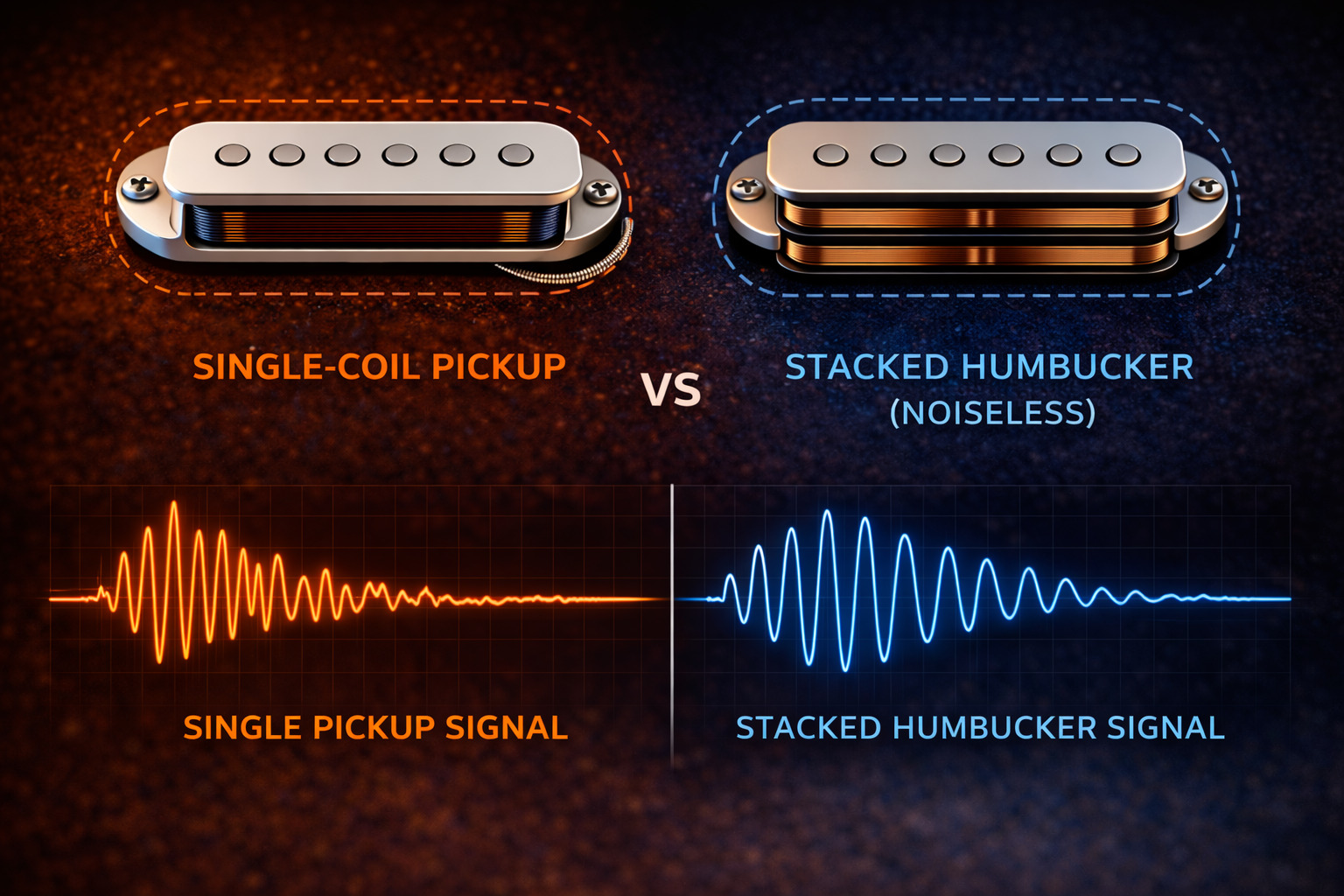

Noiseless Single Coils Stack the Humbucker Vertically

Noiseless single coils keep the footprint of a normal single coil, but hide a second coil underneath or around the main one. That gives them hum cancellation without needing a wider side-by-side humbucker housing.

They are often chosen by players who want single-coil space and feel, but with less hum. The tradeoff is that they can sound a little smoother or less airy than a truly vintage single coil.
